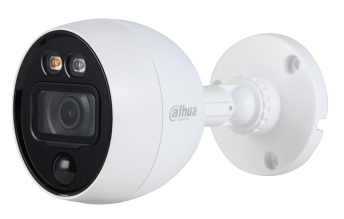

2MP HDCVI Active Deterrence Camera

· Max 30fps@1080P
· HD and SD output switchable
· 2.8mm/3.6mm fixed lens
· 10m/110°detecting range/angle
· Max. IR length 20m, Smart IR
· IP67, DC12V

Technical Specification
Camera
Image Sensor 1/2.7″ CMOS
Effective Pixels 1920(H)×1080(V), 2MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25~1/100000s
NTSC: 1/30~1/100000s
Minimum Illumination 0.02Lux/F2.0(Color), 30IRE, 0Lux IR on
S/N Ratio More than 65dB
IR Distance Up to 20m (66feet)
IR On/Off Control Auto / Manual
IR LEDs 1
Lens
Lens Type Fixed lens / Fixed iris
Mount Type Board-in
Focal Length 2.8mm (3.6mm Optional)
Max Aperture F2.0
Angle of View H: 112° (88°)
V: 59° (47°)
Focus Control N/A
Close Focus Distance 500mm(900mm)
20»(35»)
DORI Distance
Note: The DORI distance is a “general proximity” of distance which makes it easy to
pinpoint the right camera for your needs. The DORI distance is calculated based on
sensor specification and lab test result according to EN 62676-4 which defines the
criteria for Detect, Observe, Recognize and Identify respectively.
DORI
Definition Distance
Detect 25px/m
(8px/ft)
2.8mm: 37m(122ft)
3.6mm: 53m(175ft)
Observe 63px/m
(19px/ft)
2.8mm: 15m(49ft)
3.6mm: 21m(70ft)
Recognize 125px/m
(38px/ft)
2.8mm: 8m(25ft)
3.6mm: 11m(35ft)
Identify 250ppm
(76px/ft)
2.8mm: 4m(12ft)
3.6mm: 5m(17ft)
Pan / Tilt / Rotation
Pan/Tilt/Rotation
Pan: 0° ~ 360°
Tilt: 0° ~ 90°
Rotation: 0° ~ 360°
Video
Resolution 1080P (1920×1080)
Frame Rate 25/30fps@1080P, 25/30fps@720P
Video Output 1-channel BNC high definition video output / CVBS
video output (Can switch)
Day/Night Auto (ICR) / Manual

OSD Menu Multi-language
BLC Mode BLC / HLC / DWDR
WDR DWDR
Gain Control AGC
Noise Reduction 2D
White Balance Auto / Manual
Smart IR Auto / Manual
PIR
Detection Passive infrared
Detection Range 10m, 110°
Alarm Prompt White light
White Light Mode Alert/Lighting
Installation height Defualt bracket, wall mount, 2.2-3m
Certifications
Certifications
CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Interface
Audio Interface N/A
Eelectrical
Power Supply 12V DC ±30%
Power Consumption Max 4.3W (12V DC, IR on)
Environmental
Operating Conditions -10°C ~ +50°C (+14°F ~ +122°F) / Less than 95% RH
* Start up should be done at above -10°C (14°F)
Storage Conditions -10°C ~ +50°C (+14°F ~ +122°F) / Less than 95% RH
Ingress Protection &Vandal
Resistance IP67
Construction
Casing Aluminium (Front cover) + Plastic (Rear Barrel)
Dimensions 146.6mm×72.4mm×83mm (5.77″×2.85″×3.27″)
Net Weight 0.23kg (0.51lb)
Gross Weight 0.30kg (0.66lb)
