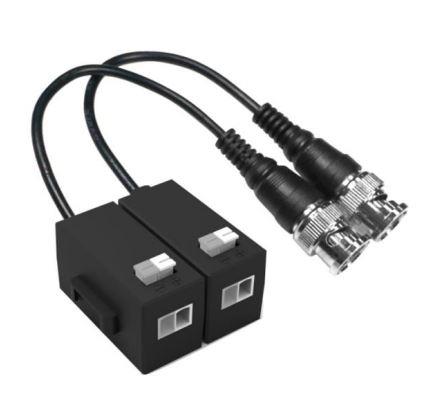

Model | PFM800-E |
Properties | |
Transmission Signal | 1 channel |
Transmission Distance | HDCVI 720P: max.400m(1312.34ft) 1080P: max.250m(820.21ft) |
Category Type | UTP CAT 5E/6 |
Video Transmission Properties And Port | |
Coaxial Video Connector | BNC-M |
Twisted-pair Video Connector | Push-terminal |
Compatible Format | HDCVI/AHD/TVI/CVBS |
Resolution | 720P/1080P |
Anti-interference | >60db |
Protection | |
ESD | 1a contact discharge electricity level 3 |
1b air discharge electricity level 3 | |
Per: IEC61000-4-2 | |
Coaxial Cable Connector | 2KV(common-code) Per: IEC1000-4-5 |
UTP Cable Connector | 2KV(different-code), 4KV(common-code), Per: IEC1000-4-5 |
Impedance | |
BNC Male | 75 ohms |
UTP Cable | 100 ohms |
Physical Properties | |
Dimension(L*W*H) | 180mm*19mm*16mm(7.09â€x0.75â€x0.63â€) |
Shell | ABS |
Color | Black |
N.W. | 42g/pair (0.09lb) |
Stability | |
MTBF | >10000h |
Environmental | |
Operating Temperature | -10?~+55?(14?~131?) |
Storage Temperature | -20?~+70?(-4?~158?) |
Humidity | 0~95%(non-condensing) |
