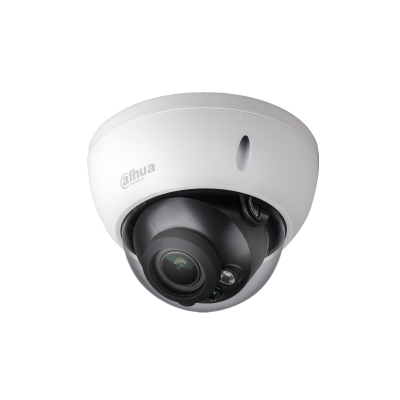

Cámara HDCVI Domo 1MP lente varifocal, de exterior, antivandálica con IR

HDBW1100R-VF-S3Agotado

Camera

Image Sensor

1/3″ CMOS

Effective Pixels

1280(H)×720(V), 1MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25~1/100000s

NTSC: 1/30~1/100000s

Minimum Illumination

0.05Lux/F1.3, 30IRE, 0Lux IR on

S/N Ratio

More than 65dB

IR Distance

Up to 30m (98feet)

IR On/Off Control

Auto / Manual

IR LEDs

2

Lens

Lens Type

Vari-focal lens / Fixed iris

Mount Type

Board-in

Focal Length

2.7-13.5mm

Max Aperture

F1.3

Angle of View

H: 91°~25°

Focus Control

Manual

Close Focus Distance

200mm

7.87»

DORI Distance

Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.

DORI

Definition

Distance

Wide

Tele

Detect

25px/m

(8px/ft)

34m(112ft)

118m(388ft)

Observe

63px/m

(19px/ft)

14m(45ft)

47m(155ft)

Recognize

125px/m

(38px/ft)

7m(22ft)

24m(78ft)

Identify

250px/m

(76px/ft)

3m(11ft)

12m(39ft)

Pan / Tilt / Rotation

Pan/Tilt/Rotation

Pan: 0° ~ 355°

Tilt: 0° ~ 75°

Rotation: 0° ~ 355°

Video

Resolution

720P (1280×720)

Frame Rate

25/30fps@720P

Video Output

1-channel BNC high definition video output / CVBS video output (Can switch)

Day/Night

Auto (ICR) / Manual

OSD Menu

Multi-language

BLC Mode

BLC / HLC / DWDR

WDR

DWDR

Gain Control

AGC

Noise Reduction

2D

White Balance

Auto / Manual

Smart IR

Auto / Manual

Certifications

Certifications

CE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Interface

Audio Interface

N/A

Eelectrical

Power Supply

12V DC ±25%

Power Consumption

Max 2.9W (12V DC, IR on)

Environmental

Operating Conditions

-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH

* Start up should be done at above -40°C (-40°F)

Storage Conditions

-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH

Ingress Protection & Vandal Resistance

IP67 & IK10

Construction

Casing

Aluminium

Dimensions

F122mm×88.9mm (F4.8″×3.5″)

Net Weight

0.40kg (0.88lb)

Gross Weight

0.55kg (1.21lb)
