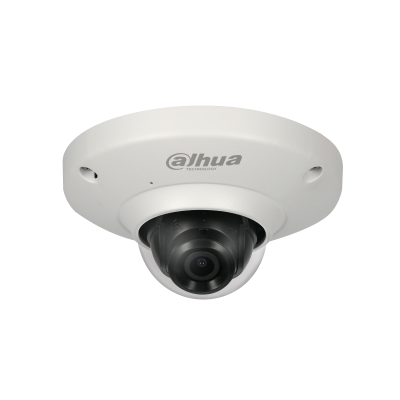

Cámara IP Ojo de pez 5MP, panorámica, WDR, PoE, micrófono, de exterior

IPC-EB5531Agotado
Cantidad

Camera

Image Sensor

1/2.7” 5Megapixel progressive scan CMOS

Effective Pixels

2592(H)x1944(V)

RAM/ROM

512MB/32MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3(4)~1/100000s

Minimum Illumination

0.02Lux/F1.6( Color,1/3s,30IRE)

0.2Lux/1.6( Color,1/30s,30IRE)

0.05Lux/F1.6( B/W,1/3s,30IRE)

0.5Lux/1.6( B/W,1/30s,30IRE)

S/N Ratio

More than 50dB

IR Distance

N/A

IR On/Off Control

N/A

IR LEDs

N/A

Lens

Lens Type

Fixed

Mount Type

Board-in

Focal Length

1.4mm

Max. Aperture

F1.6

Angle of View

H: 180°, V: 180°

Optical Zoom

N/A

Focus Control

Fixed

Close Focus Distance

N/A

DORI Distance

Lens

Detect

Observe

Recognize

Identify

1.4mm

28m(92ft)

11m(36ft)

6m(20ft)

3m(10ft)

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range

Pan:0°~355°; Tilt:0°~75°; Rotation:0°~360°

Intelligence

Advanced Intelligent Functions

Tripwire ,Intrusion,Heat map

Video

Compression

H.265+/H.265/H.264+/H.264

Streaming Capability

3 Streams

Resolution

5M(2592×1944)/3M(2048×1536)/UXGA(1600×1200)/1.3M(1280×960)/D1(704×576/704×480)/CIF(352×288/352×240)

Frame Rate

Main Stream:5M(1~25fps)

Sub Stream: D1(1~25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 24~10240Kbps

H.265: 14~9984Kbps

Day/Night

Electronic

Powered by
