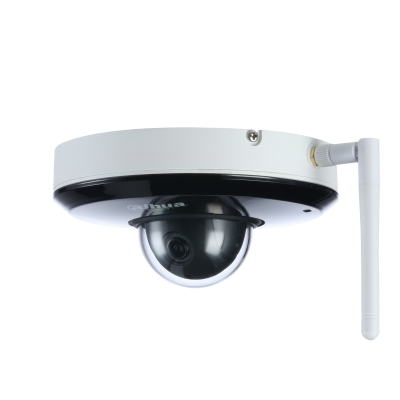

Cámara IP PT 2MP, Starlight, WiFi, IVS, de exterior con IR

SD1A200T-GN-WAgotado

Camera

Image Sensor

1/2.8” STARVIS™ CMOS

Effective Pixels

1920(H) x 1080(V), 2 Megapixels

RAM/ROM

512M/128M

Scanning System

Progressive

Electronic Shutter Speed

1/1s~1/30,000s

Minimum Illumination

Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6; 0Lux@F1.6 (IR on)

S/N Ratio

More than 50dB

IR Distance

Distance up to 15m (49.2ft)

IR On/Off Control

Auto/Manual

IR LEDs

3

Lens

Lens Type

Fixed

Focal Length

3.6mm/2.8mm

Max. Aperture

F1.6

Angle of View

3.6mm: H: 80.9°; V: 40.8°

2.8mm: H: 102.9°; V: 54.9°

Optical Zoom

N/A

Focus Control

Fixed

DORI Distance

Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.

Lens

Detect

Observe

Recognize

Identify

3.6mm

54.5m(178.8ft)

21.8m(71.5ft)

10.9m(35.8ft)

5.4m(17.7ft)

2.8mm

41.4m(135.8ft)

16.6m(54.5ft)

8.3m(27.2ft)

4.1m(13.5ft)

PTZ

Pan/Tilt Range

Pan: 0° ~ 355°; Tilt: 20° ~ 90°

Manual Control Speed

Pan: 0.1° ~70° /s; Tilt: 0.1° ~30° /s

Preset Speed

Pan: 80° /s; Tilt: 40° /s

Presets

300

PTZ Mode

8 Tour

Speed Setup

Human-oriented focal Length/speed adaptation

Power up Action

Auto restore to previous PTZ and lens status after power failure

Idle Motion

Activate Preset/Tour if there is no command in the specified period

Protocol

DH-SD

Intelligence

Event Trigger

Motion detection, Video tampering, Network disconnection, IP address conflict, Illegal access, Storage anomaly

Auto Tracking

N/A

IVS

Tripwire, Intrusion,Abandoned/Missing

Advanced Intelligent Functions

Face Detection

Video

Compression

H.265+/H.265/H.264+/H.264

Streaming Capability

3 Streams

Resolution

1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240)

Frame Rate

Main stream: 1080P/720P(1 ~ 25/30fps)

Sub stream1: D1/CIF(1 ~ 25/30fps)

Sub stream2: 720P/D1/CIF(1 ~ 25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.265/H.264: 448K ~ 8192Kbps

Day/Night

Auto(ICR) / Color / B/W

Backlight Compensation

BLC / HLC / WDR(120dB)

White Balance

Auto, ATW, Indoor, Outdoor, Manual

Gain Control

Auto / Manual

Noise Reduction

Ultra DNR (2D/3D)

Motion Detection

Support

Region of Interest

Support

Electronic Image Stabilization (EIS)

N/A

Defog

Support

Digital Zoom

16x

Flip

180°

Privacy Masking

Up to 24 areas

Audio

Compression

G.711a/G.711mu/G.726/AAC

Network

Ethernet

RJ-45 (10XBase-T/100Base-TX)

Wi-Fi

Wi-Fi(IEEE802.11a/b/g/n/ac) , Dual-Band Wi-Fi

Protocol

IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x

Interoperability

ONVIF Profile S&G, API

Streaming Method

Unicast / Multicast

Max. User Access

20 users

Edge Storage

NAS (Network Attached Storage),Local PC for instant recording, Micro SD card 256GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, DMSS

Smart Phone

IOS, Android

Certifications

Certifications

CE: EN55032/EN55024/EN50130-4

FCC: Part15 subpartB,ANSI C63.4- 2014

UL: UL60950-1+CAN/CSA C22.2,No.60950-1

Interface

Video Interface

N/A

RS485

N/A

Audio I/O

Mic in/Line in, Line out

Alarm I/O

N/A

Electrical

Power Supply

DC 12V/1.5A

Power Consumption

7.8W, 10.5W (IR on)

Environmental

Operating Conditions

-30°C ~ 60°C (-22°F ~ +140°F) / Less than 95% RH

Ingress Protection

IP66

Vandal Resistance

IK08

Construction

Casing

Metal

Dimensions

F128(mm) x 63(mm)

Net Weight

0.49kg(1.08lb)

Gross Weight

0.73kg(1.6lb)
