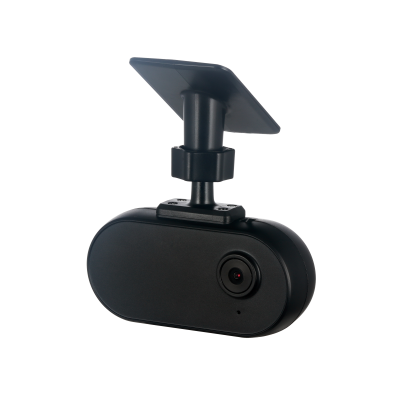

Cámara para vehículos HDCVI 1.3MP, lente fijo 2.8mm, con micrófono

Camera

Image Sensor

1/2.7″ CMOS

Effective Pixels

1280(H)×720(V), 1.3MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25~1/100000s

NTSC: 1/30~1/100000s

Minimum Illumination

0.02Lux/F2.0, 0.002lux/F2.0(B/W)

S/N Ratio

More than 65dB

IR Distance

N/A

IR On/Off Control

N/A

IR LEDs

N/A

Lens

Lens Type

Fixed lens / Fixed iris

Mount Type

Board-in

Focal Length

2.8mm

Max Aperture

F2.0

Angle of View

H: 116°

Focus Control

N/A

Pan / Tilt / Rotation

Pan/Tilt/Rotation

Pan: 0° ~ 30°

Tilt: 0° ~ 30°

Rotation: 0° ~ 360°

Video

Resolution

720P (1280×720)

Frame Rate

PAL:1280×720@50fps, 1280×720@25fps;

NTSC:1280×720@60fps, 1280×720@30fps

Video Output

1-channel HDCVI high definition video output (Aviation connector)

Day/Night

Color

OSD Menu

Multi-language

BLC Mode

BLC / HLC / DWDR

WDR

DWDR

Gain Control

AGC

Noise Reduction

2D

White Balance

Auto / Manual

DORI Distance

Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.

DORI

Definition

Distance

Detect

25px/m

(8px/ft)

37.3m(122.4ft)

Observe

63px/m

(19px/ft)

14.9m(48.9ft)

Recognize

125px/m

(38px/ft)

7.5m(24.6ft)

Identify

250ppm

(76px/ft)

3.7m(12.1ft)

Certifications

Certifications

CE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

EN50155 (EN50121-3-2, IEC61373)

Interface

Audio Interface

1-channel Built-in Mic

Aviation Connector Interface

1-power

2-video ground

3-power ground

4-video

Eelectrical

Power Supply

12V DC ±25%

Power Consumption

Max 0.9W

Environmental

Operating Conditions

-40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH

* Start up should be done at above -40°C (-40°F)

Storage Conditions

-40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH

Ingress Protection & Vandal Resistance

N/A

Construction

Casing

Plastic

Dimensions

115..8×99.5×27.4mm (4.56″×3.92″×1.08″)

Weight

0.085kg (0.187lb)
