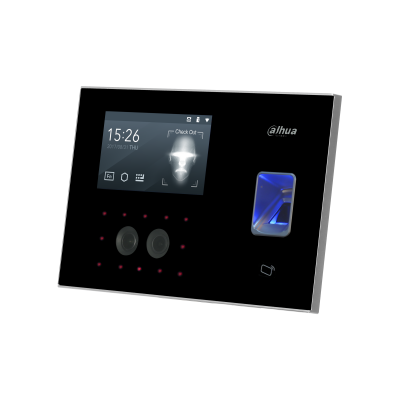

Control de asistencia y acceso autónomo con biometría y reconocimiento facial

ASA4214F
Cantidad

Technical Speci?cation

Model

ASA4214F/ASA4214F-D

ASA6214F/ASA6214F-D

Hardware

Main Processor

32 Bit, 900MHZ

RAM

512MB

Flash Memory

256MB

LCD

4.3″ touch-screen

Resolution

480 x 272

Capacity

Card Holders

30,000

Face Template

1,000 (1: N)

3,000 (1:N)

Fingerprint Template

3,000 (1: N)

Transaction Logs

150,000

Face Recognition

working Illuminance

1 LX~ 20,000 LX

Recognition Time

=1s

FAR

<0.001%

FRR

<1%

Card Read

Read Format

13.56MHz Mifare card/ 125KHz Em card

Read Range

3-5cm

Fingerprint Read

Response Time

=0.5s

Recognition Time

=1s

FAR

=0.00004%

FRR

=0.15%

Interface

Wi-Fi

802.11 b/n/g

TCP/IP

Yes

RS-485

Yes

RS-232

Yes

Wiegand

Input/ Output (3rd party controller)

Alarm

Alarm Input x 2, Alarm Output x 2

Access

Lock x1, Door Sensor x 1, Exit Button x1

USB

USB Host

Switch Button

Yes

Function

Access control

Anti-passback, Multi-card unlock, schedule management, Holiday management,

Normal open Period, Normal close period etc.

Unlock Mode

face/fp/card/pwd/super pwd or face+fp or face+card and combination

Alarm Function

Door time overtime alarm, Intrusion alarm, Duress alarm, Tamper alarm

Attendance events

Check In, Check Out, Break In, Break Out, OT-in, OT-out

Bell

8 Bell Schedule

Administrator records

Detail records for administrator operation

Attendance Events selection

Auto/Manual, Forced, Fixed

Use Level

User/admin

Software Platform

SmartPSS

General

Tamper

Yes

Overcurrent protection

Yes

Overvoltage Protection

Yes

HD Dual-Camera

Yes (2.0Mp Visible + 1.3Mp Infrared)

Power Supply

12V 2A

Net Weight

800 g

Dimension (W x H x D mm)

214 x 122 x 103

Operating Temperature

-5 ? ~ 55?

23? ~ 131?

Humidity

5% ~ 95%

Certificates

CE, FCC
