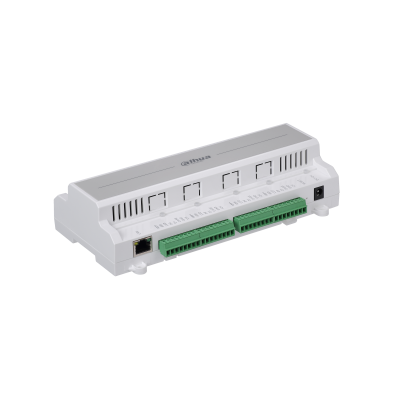

Controladora de acceso para 2 puertas

ASC1202B-SAgotado
Cantidad

System

Main Processor

32 Bit

Memory

16M

Input/Output Ports

Input

Inputs x 8 ( door sensor x 2, exit button x 2, alarm x 4)

Output

Relay x 4(door lock x 2, alarm x 4 )

Reader

Reader x 4

Capacity

Card holders/Events

100,000/150,000

Function

Access control

Anti-pass back, Multi-interlock, Multi-card unlock

User Management

General, VIP, Guest, Patrol, Black list, Duress

Alarm Function

Door time out alarm, Intrusion alarm, Duress alarm, Tamper alarm

Period

Support 128 groups of schedule, 128 groups of period and 128 groups of holiday period

Interface

To PC

RJ45(10/100M)

To Reader

Wiegand26/34,RS485

Genreal

RTC

Yes

Power Supply

9-15DC/500mA

Working Environment

-30°C~+60°C

Working Humidity

=95%

Dimension(W×D×H)

210*51*116mm

Weight

0.56Kg
