Más información

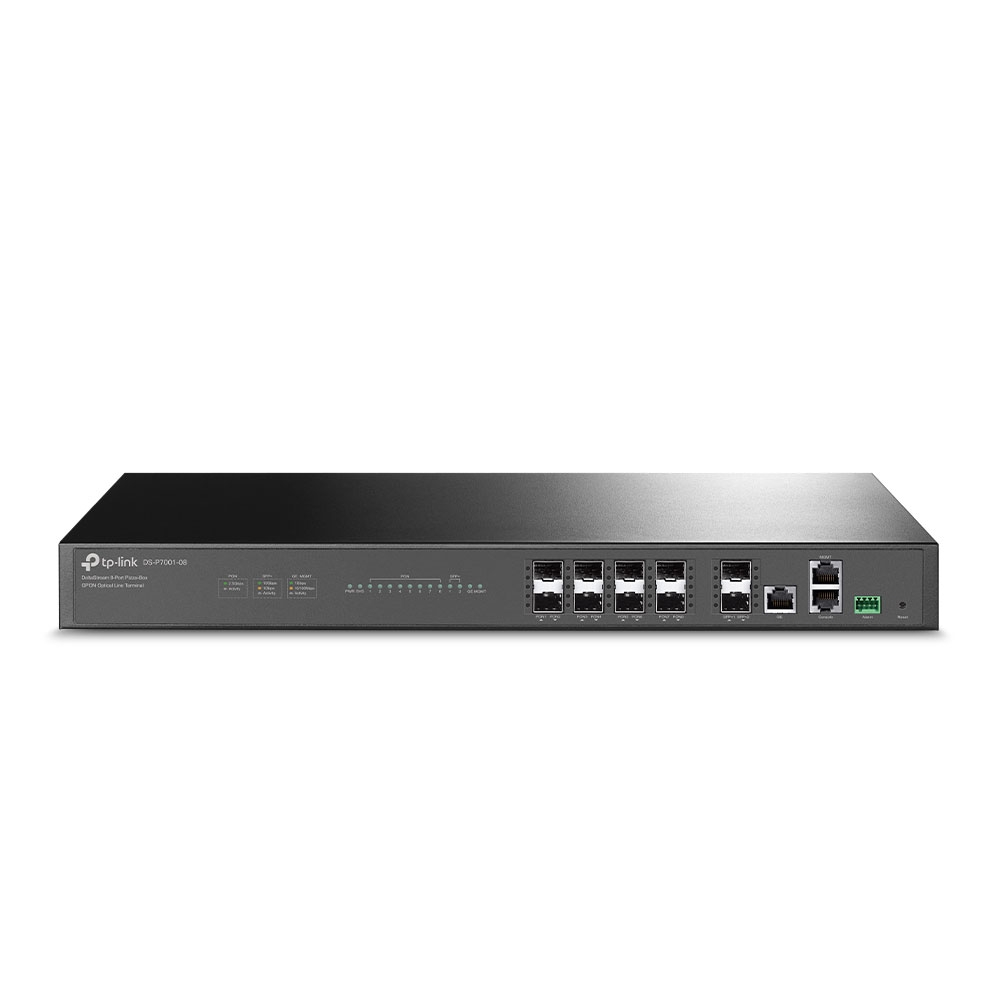

- 8 GPON Ports: Supports 1:128 splitting ratio for every port—up to 1024 ONTs by one device.
- High-Speed Uplink Ports: Provides 2× 10GE SFP+ ports and 1× gigabit uplink port.
- Redundant Dual Power Supplies: Carrier-class reliability with dual hot-swapping AC+DC power supplies.
- Complete L2 & Advanced L3 Functions: Satisfies the need for numerous commercial requirements.
- Centralized Management: Via DeltaStream PON Management System (DPMS), SNMP, CLI, and WEB UI.
- Advanced L2/L2+ Functions: Static Routing, IGMP Snooping, and more meet the requirement for different applications.
| CARACTERÍSTICAS DE HARDWARE | |
|---|---|
| Interface | • 8× 2.5G PON Ports • 2× 10 Gbps SFP+ Uplink Ports • 1× 10/100/1000 Mbps RJ45 Uplink Port • 1× RJ45 Console Port • 1× RJ45 MGMT Port • 1× Alarm Port (Reserved) |
| Botón | Reset Button |
| Fuente de alimentación | • Dual Power Supplies: 2 AC, 2 DC or AC+DC, • AC: 100V~240V, 50/60Hz • DC: -38.4V~-72V |
| Consumo de Poder | Max. 70W |
| Dimensiones (An x Pr x Al) | 17.3 × 10.2 × 1.7 in (440 × 260 × 44 mm) |
| FUNCIONES DE SOFTWARE | |
|---|---|
| Seguridad | • ACL • 802.1x Authentication • ARP Inspection • IP Source Guard |
| DHCP | • DHCP Server • DHCP Relay |
| OMCI | Standard OMCI Management Supported |
| ONU Authentication | ONU Auto Authentication |
| ONU Security | • Rouge ONU Detection and Isolation • Uplink and Downlink Data Encryption |
| Multi-Service | Multi-Service Traffic Identify and Rate Limit |
| QoS | • IEEE 802.1p/DSCP QoS • Voice VLAN • Auto VoIP |
| Routing | Static Routing |
| Mulitcast | • IGMP Snooping • MLD Snooping |
| Centralized Management | • Large-Scale Devices Management • OLT Batch Configure, Upgrade, Reboot • Multi-Site Management • Intelligent Network Monitoring • Real-time Network Overview |
| OTROS | |
|---|---|
| Certificación | CE,FCC |
| contenidos del paquete | • OLT Device • Power Cord and Console Cable • Installation Guide • Mouting Brackets, Screws and Rubber Feet |
| Ambiente | • Operating Temperature: 0°C~50°C (32°F~122°F) • Storage Temperature: -40℃~70℃(-40°F ~158°F) |
| ATRIBUTO DE PUERTO GPON | |
|---|---|
| Max. Splitting Ratio | 1:128 |
| Distancia de transmisión | 20 km |
| Velocidad de datos | • Downstream: 2.5 Gbps • Upstream: 1.25 Gbps |
| Longitud de onda | • Tx: 1490 nm • Rx: 1310 nm |
| Tipo de interfaz | SC/UPC |
| Tipo de fibra | 9/125μm SMF (Single Mode Fiber) |
| Poder TX | Class C+ |
