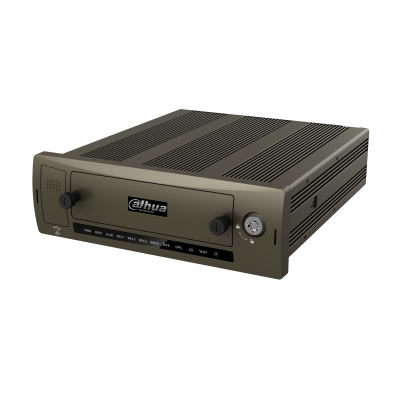

DVR para vehículos de 4 canales HDCVI 2MP

MCVR5104-GCAgotado

System

Main Processor

Embedded microprocessor

Operating System

Embedded LINUX

Audio and Video

Input

4 Channel (Don’t support audio in when connecting analog cameras)

Two-way Talk

1 Channel Input, 1 Channel Output, RCA

Display

Interface

1VGA, 2TV

Resolution

1920×1080, 1280×1024, 1280×720, 1024×768, 800×600

Display Split

1/4

Privacy Masking

4 rectangular zones (each camera)

OSD

Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Recording

Video/Audio Compression

H.264/G.711

Resolution

2ch@1080P+2ch@720P(1~25/30fps)

Bit Rate

48~8192Kb/s

Record Mode

Manual, Schedule(Regular(Continuous), MD, Alarm), Stop

Record Interval

1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec

Video Detection and Alarm

Trigger Events

Recording, PTZ, Tour, Alarm, Email, FTP, Buzzer & Screen tips

Video Detection

Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank

Alarm input

7 channels, Alarm 1-6 is the local alarm input,

Alarm 7 is pulse input.

Relay Output

2 channels

Playback and Backup

Playback

1

Search Mode

Time/Date, Alarm, Motion Detection & Exact search (accurate to second)

Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom

Backup Mode

USB Device/Network

Storage

Internal HDD

1 SATA Port, Up to 2 TB capacity

SD card

1 SD card, Up to 128 GB

Network

Ethernet

RJ-45 Port (10/100Mbps)

Wireless Network

Built-in 3G/4G/Wi-Fi module(optional)

GPS

Built-in high accurate GPS module(optional)

Network Function

TCP/IP, UDP, DHCP, DDNS, FTP, Email, Alarm Server

Max. User Access

128 users

Smart Phone

iPhone, iPad, Android

Auxiliary Interface

USB

2 Ports (1 rear), USB 2.0

RS232

1 Port, for PC Communication and Keyboard

RS485

1 Port, for PTZ Control

CAN

Support

Heater

Optional

Electrical

Power Supply

DC 6V~36V

Power Consumption

<15W (Without HDD)

Environmental

Operating Conditions

-30°C (with heater)~ +60°C (+14°F ~ +131°F)

Storage Conditions

-30°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH

Construction

Dimensions

178mm×220mm×50mm (7.0″ x 8.7″ x 2.0″)

Net Weight

2.1kg (4.6 lb) (without HDD)

Certifications

CE

FCC

EN50155

ISO16750
