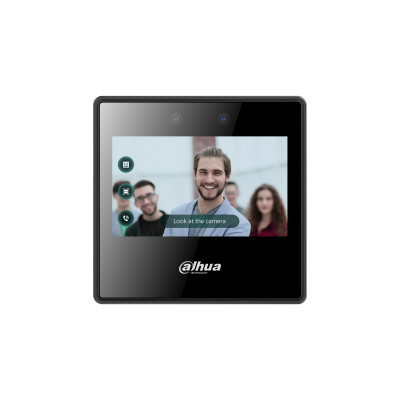

4.3 inch glass touch screen with a resolution of 480 × 272.
> 2-MP wide-angle dual-lens camera with IR illumination and DWDR.
> Multiple unlock methods including face and password. You can also combine them to create your own personal unlock methods.
> Supports mask detection.
> Supports visitor QR code with DSS Pro Platform.
> Recognizes faces 0.3 m to 1.5 m away (0.98 ft-4.92 ft).
> Supports 2,000 users, 2,000 faces, 2,000 passwords, 50 administrators, and 300,000 records.
> Liveness detection has a face recognition accuracy rate of 99.9% and the 1:N comparison time is 0.2 s per person.
> Supports making video calls and using the app to receive alarm notifi cations, remotely unlock doors and to perform other tasks.
> Supports customization of voice prompts.
System
Main Processor
Embedded Processor
Network Protocol
IPv4;RTSP;RTP;TCP;UDP;SIP;P2P
OSDP Protocol
Yes
Interoperability
ONVIF;CGI
SDK and API
Yes
Basic
Product Type
Standalone
Display Screen
4.3″ LCD
Screen Type
Capacitive Touchscreen
Screen Resolution
480 (H) × 272 (V)
Camera
2-MP CMOS HD dual-lens camera
WDR
DWDR
Light Compensation
Auto IR
Voice Prompt
Yes
Casing
PC + ABS
Function
Unlock Mode
Password, remote, face and combination unlock
Period List
128 periods
Holiday Period
128 periods
Network Update
Yes
First User Unlock
Yes
Remote Verification
Yes
Restricted List/Trusted List
Yes
Peripheral Card Reader
1 × RS–485 card reader; 1 × Wiegand card reader
Multi-user Authentication
Yes
Real-time Monitoring
Yes
Web Configuration
Yes
Auto Registration
Yes
Performance
Face Recognition Height Range
1.1 m– 2.0 m (3.61 ft–6.56 ft)
Face Recognition Distance
0.3 m–1.5 m (0.98 ft–4.92 ft)
Face Recognition Accuracy
99.9%
Face Recognition Time
0.2 s
Read Speed (QR Code )
500 ms
Code Type
Paper; Electronic
User
User (Card) Type
Normal user; VIP users; patrol users; guest user; blocklist user; other user
Capacity
User Capacity
2,000
Face Image Capacity
2,000
Password Capacity
2,000
Record Capacity
300,000
Port
RS-485
1
Wiegand
1
USB
1 × USB 2.0
Network Port
1 × RJ-45 10/100 Mbps self-adaptive Ethernet port
Exit Button
1
Lock Control
1
Door Status Detection
1
Alarm
Anti-pass Back
Yes
Tamper Alarm
Yes
Duress Alarm
Yes
Door Sensor Timeout
Yes
Intrusion
Yes
General
Power Adapter
Standard
Power Supply
12 VDC, 1.5 A
Power Consumption
≤18 W
Product Dimensions
115.0 mm × 118.0 mm × 27.1 mm (4.53″ × 4.65″ × 1.07″) (H × W × W)
Packaging Dimensions
190 mm × 179 mm × 127 mm (7.48″ × 4.65″ × 5.00″) (L × W × H, protection box)
Operating Temperature
–10 °C to +40 °C (+14 °F to +104 °F)
Operating Humidity
0%–90% (RH), non-condensing
Operating Environment
Indoor
Net Weight
250 g (0.55 lb)
Gross Weight
400 g (0.88 lb)
Accessory
Wall mount bracket (included)
Installation
Wall; 86 case mount; Desk Mount
