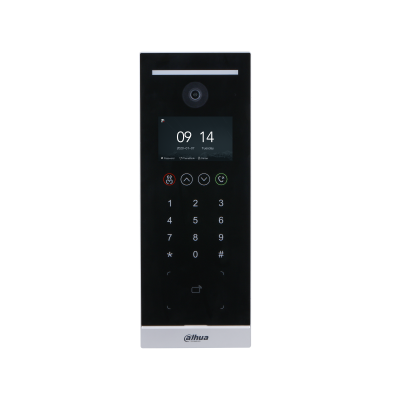

> 4.3 inch IPS display; screen resolution 800×480
> 2MP CMOS; true WDR
> Touch button; IP65
> Operating temperature: -30°C to +60°C · Auto light illumination reduces light pollution
> Multiple unlock modes: Password unlock, IC card unlock, and remote unlock
> Support 20,000 users and 10,000 cards
> Support full duplex; management platform, and voice call through APP
> Support SIP server
Support duress alarm, tamper alarm, and door sensor timeout alarm
System
Main Processor
Embedded processor
Operating System
Embedded Linux operating system
Button Type
Touch button
Network Protocol
SIP; P2P; IPv4; FTP; UPnP; DNS; DDNS; RTSP; RTP; TCP; UDP
ROM
4GB
RAM
1GB
Basic
Display
4.3 inch IPS screen
Screen Resolution
800×480
Camera
1/2.7″ 2MP CMOS high definition, low illumination, white illuminator and IR illuminator
Field of View
Horizontal: 113.79°; vertical: 61.5°;
diagonal: 134.45°
Focal Length
2.8mm
Aperture
F2.0
WDR
120dB
Noise Reduction
3D noise reduction
Video Compression
H.264
Video Resolution
Main Stream: 720p, sub stream: 1080P
Frame Rate
Main Stream (720P@25fps), sub stream (1080P@25fps)
Main Stream (720P@30fps), sub stream (1080P@30fps)Video Bit Rate
256Kbps–2048Kbps
Light Compensation
Auto white light
Audio Compression
G.711u
Audio Input
1
Audio Output
Built-in speaker
Audio Mode
Full duplex communication
Audio Enhancement
Echo suppression and cancellation/digital noise reduction
Audio Bit Rate
16KHz, 16Bit
Communication Mode
Full digital
Unlock Mode
Card/remote/password unlock
Card Type
IC card
Motion Detection
Video motion detection
Auto Snapshot
Yes
Leave Videos or Text Messages
Yes
Web Configuration
Yes
Performance
Card Reading Distance
1cm–5cm
Issue Card Locally
Yes
Casing Material
PC+ABS
Capacity
Card
10, 000
Port
RS-485
1
Wiegand
1 input port, 1 output port
Electric lock
1
Alarm Input
2
Alarm Output
2
Power Output
1 12V/100mA
Exit Button
1
Door Status Detection
1
Lock Control
1, normally open by default
Network
1 RJ-45 10Mbps/100Mbps self-adaptive
Alarm
Tamper
Yes
General
Unlock Password Mode
User password/public password/duress password
Color
Silver
Power Supply Mode
DC 12V2A
Power Adapter
Optional
Installation
Surface mount and Flush mount
Certification
CE/FCC
Accessory
Optional
Product Dimensions
389 mm×145 mm×41.9 mm (15.31″×5.71″×1.65″)
Protection Grade
IP65 (silicone sealant is needed, see the quick start guide)
Operating Temperature
-30°C to +60°C (-22°F to +140°F)
Operating Humidity
10%RH–90%RH (non-condensing)
Operating Altitude
86kPa–106kPa
Power Consumption
≤5W (standby), ≤18W (working)
Net Weight
1.4 kg (3.09 lb)
Gross Weight
1.68 kg (3.70 lb)
