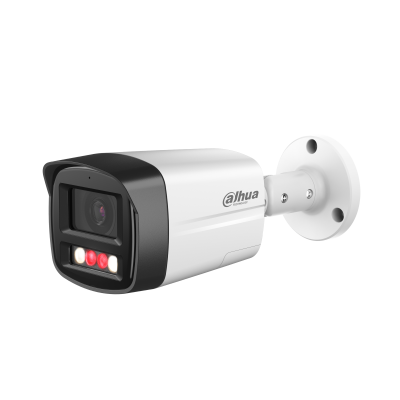

    IPC-HFW2449TL-S-PV 4MP Smart Dual Light Active Deterrence Fixed-focal Bullet WizSense Network Camera

    Valoraciones
    IPC-HFW2449TL-S-PVDisponibles: 45

    > 4-MP 1/2.9″ CMOS image sensor, low luminance, and high definition image.

    > Outputs max. 4 MP (2688 × 1520)@20 fps, and 4 MP (2560 × 1440)@25/30 fps by default.

    > H.265 codec, high compression rate, ultra-low bit rate.

    > Built-in IR LED and warm light, and the max. IR illumination distance is 30 m, the max. warm light distance is 30 m.

    > ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.

    > Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.

    > Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

    > Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.

    > Supports max. 256 G Micro SD card; built-in Mic; built-in speaker; support two-way talk.

    > 12 VDC/PoE power supply, easy for installation.

    > IP67 protection.

    > Sound and light alarm

    > SMD Plus.

    One-tap arming/disarming.



    Camera
    Image Sensor 1/2.9″ CMOS
    Max. Resolution 2688 (H) × 1520 (V)
    ROM 128 MB
    RAM 128 MB
    Scanning System Progressive
    Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
    Min. Illumination 0.004 lux@F1.0 (Color, 30 IRE)
    0.0004 lux@F1.0 (B/W, 30 IRE)
    0 lux (Illuminator on)
    S/N Ratio >56 dB
    Illumination Distance Up to 30 m (98.43 ft) (IR )
    Up to 30 m (98.43 ft) (Warm Light)
    Illuminator On/Off Control Auto;Manual
    Illuminator Number 2 (IR LED); 2 (Warm light)
    Angle Adjustment Pan: 0°–360°
    Tilt: 0°–90°
    Rotation: 0°–360°
    Lens
    Lens Type Fixed-focal
    Lens Mount M12
    Focal Length 2.8 mm; 3.6 mm
    Max. Aperture F1.0
    Field of View 2.8 mm: H: 101.6°; V: 54.8°; D: 122.1°
    3.6 mm: H: 84°; V: 45.6°; D: 98.9°
    Iris Control Fixed
    Close Focus Distance 2.8 mm: 1.4 m (4.59 ft)
    3.6 mm: 2.0 m (6.56 ft)
    DORI Distance Lens Detect Observe Recognize Identify
    2.8 mm 63.8 m (209.32 ft) 25.5 m

    (83.66 ft)

    		 12.8 m

    (41.99 ft)

    		 6.4 m

    (21.00 ft)
    3.6 mm 77.8 m (255.25 ft) 31.1 m

    (102.03 ft)

    		 15.6 m

    (51.18 ft)

    		 7.8 m

    (25.59 ft)
    DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
    Intelligence
    IVS (Perimeter Protection) Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
    SMD SMD Plus
    Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
    Video
    Video Compression H.265; H.264; H.264H; H.264B; MJPEG (only supported by sub stream)
    Smart Codec Smart H.265+; Smart H.264+
    Video Frame Rate Main stream: 2688 × 1520@(1–20 fps)/2560 × 1440@(1–25/30 fps);
    sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps);
    *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
    Stream Capability 2 streams
    Resolution 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
    Bit Rate Control CBR/VBR
    Video Bit Rate H.264: 32 kbps–6144 kbps;
    H.265: 12 kbps–6144 kbps
    Day/Night Auto(ICR)/Color/B/W
    BLC Yes
    HLC Yes
    WDR 120 dB
    White Balance Auto; natural; street lamp; outdoor; manual; regional custom
    Gain Control Auto/Manual
    Noise Reduction 3D NR
    Motion Detection OFF/ON (4 areas, rectangular)
    Region of Interest (RoI) Yes (4 areas)
    Smart Illumination Yes
    Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
    Mirror Yes
    Privacy Masking 4 areas
    Audio
    Built-in MIC Yes, built-in Mic
    Built-in Speaker Yes, built-in speaker
    Audio Compression G.711a; G.711Mu; G.726; PCM
    Alarm
    Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception
    Network
    Network Port RJ-45 (10/100 Base-T)
    SDK and API Yes
    Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; NFS; P2P; auto registration
    Interoperability ONVIF (Profile S; Profile G; Profile T); CGI
    User/Host 6 (Total bandwidth: 36 M)
    Storage FTP; SFTP; Micro SD card (support max. 256 GB)
    Browser IE; Chrome; Firefox
    Management Software Smart PSS Lite; DSS; DMSS
    Mobile Client iOS;Android
    Cyber Security Configuration encryption;Trusted execution;Digest;Security logs;WSSE;Account lockout;syslog;Video encryption;802.1x;IP/MAC filtering;HTTPS;Trusted upgrade;Trusted boot;Generation and importing of X.509 certification
    Certification
    Certifications CE-LVD: EN62368-1;
    CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
    Power
    Power Supply 12 VDC/PoE
    Power Consumption Basic: 2.2 W (12 VDC); 3 W (PoE)

    Max. (H.265 + intelligence on + WDR + IR intensity + warm light deterrence + speaker): 11.9 W (12 VDC); 13.6 W (PoE)
    Environment
    Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
    Operating Humidity ≤95%
    Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
    Storage Humidity ≤95%
    Protection IP67
    Structure
    Casing Material Metal
    Product Dimensions 197.9 mm × 80.2 mm × 76.2 mm (7.79″ × 3.16″ × 3.00″) (L × W × H)
    Net Weight 0.53 kg (1.17 lb)
    Gross Weight 0.67 kg (1.48 lb)

    Datasheet
