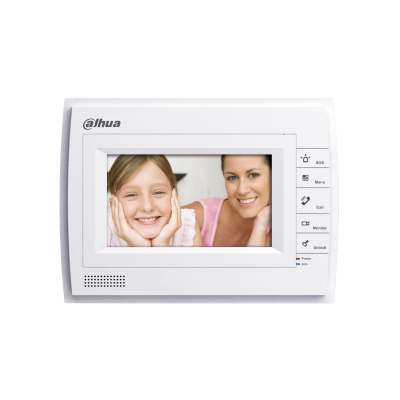

Monitor análogo de 7 pulgadas para video portero

VTH1500AH-S
Cantidad
Model DHI-VTH1500AH-S
System Main Processor NEC MCU
Operation Interface Simple OSD message
Input Device Mechanical keys, 5
Video Video Input 1-ch CVBS analog video
Video Display 7” color LCD, resolution: 800×480
Monitoring Support monitoring with monitor button
Audio Audio Input 1-ch microphone input (Omni-directional electrets)
Audio Output 1-ch loudspeaker output
Bidirectional Talk 1-ch bidirectional talk, two way
Alarm Alarm input Support 6 channels input
Alarm output Support 1 channel input
Network Function Net Control Monitor & Unlock
Call management center for emergency
RS485 bus
Remotely upgrade
Interface Net Interface RJ45(non-Ethernet)plug connected with distributor, including power supply, AV and control signal
RS485 Bus control and software upgrading
DC Power 24V
System Upgrading Remote network upgrading
General Power 24V / 0.3A
Power Consumption max 6W
Temperature -5?-+55?
Humidity 20%-90%
Dimensions 261.0mm*192.0mm*24.1mm(L*W*T)
Weight 0.7 Kg
Installation Method Surface mounted & Flush Mounted
