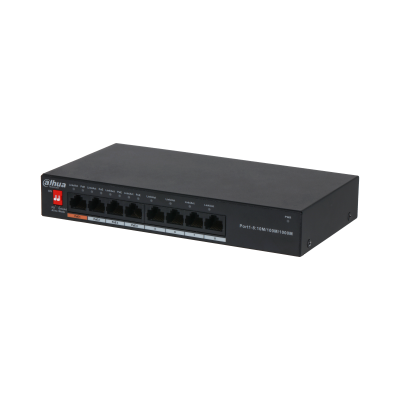

8-Port Unmanaged Desktop Switch with 4 Port PoE

> * The parameters and datasheets below can only be applied to V2.0 (version 2.0)

> Intelligent PoE

> 8-pin assignment PoE power supply
> Long distance PoE
> PoE watchdog

> Hi-PoE 60W

> All-giga ports

> Wide working temperature

Hardware
Data Transmission Port Port 1-4: 4 × RJ-4510/100/1000 Mbps (PoE)
Port 5-8: 4 × RJ-45 10/100/1000 Mbps
Power Supply 48 V–57 V DC
Operaing Temperature –10 °C to + 55 °C(+14 °F to + 131 °F)
Operating Humidity 5%–95% (RH)
Storage Temperature –20 °C to + 70°C (–4 °F to + 158°F)
Storage Humidity 5%–95% (RH)
Power Consumption Idling: 3.0 W
Full load: 60 W
Performance
Capacity 20 Gbps
Packet Forwarding Rate 11.9 Mpps
Packet Buffer Memory 1.5 Mbit
MAC Table Size 8K
Communication Standard IEEE802.3; IEEE802.3u; IEEE 802.3ab; IEEE802.3X
PoE
PoE Standard IEEE802.3af; IEEE802.3at; Hi-PoE
PoE Power 60 W
Power Consumption Management Yes
PoE Pin Assignment 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
Long Distance PoE Supports 250 m (820.21 ft)
General
Statics Protection Air discharge: 8 kV
Contact discharge: 6 kV
Thunder-proof Common mode: 2 kV
Differential mode: 0.5 kV
Net Weight 490 g (1.08 lb)
Product Dimensions 190 mm × 100 mm × 30 mm (7.48″ × 3.93″ × 1.18″) (W × L × H)
