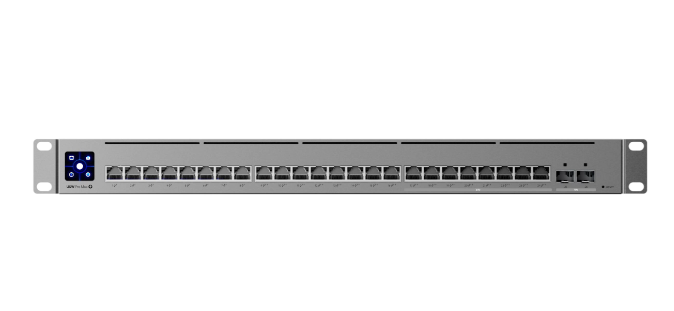

Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
(8) 2.5 GbE PoE++ ports
(16) GbE ports including (8) PoE+ and (8) PoE++
(2) 10G SFP+ ports
DC power backup ready
400W total PoE availability
MechanicalDimensions442 x 325 x 44 mm (17.4 x 12.8 x 1.7″)WeightWithout mounting brackets: 5.1 kg (11.3 lb)
With mounting brackets: 5.2 kg (11.5 lb)Enclosure materialSGCC steelHardwareManagement interfaceEthernet In-BandNetworking interface(16) GbE RJ45 ports
(8) 1/2.5 GbE RJ45 ports
(2) 10G SFP+ portsPoE interface(8) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(16) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)Total non-blocking throughput56 GbpsSwitching capacity112 GbpsForwarding rate83.328 MppsPower method(1) Universal input, 100—240V AC, 50/60 Hz
(1) USP-RPS DC inputPower supplyAC/DC, internal, 450WSupported voltage range100—240V ACMax. power consumption50W (Excluding PoE output)Total available PoE400WMax. PoE wattage per port by PSEPoE: 15.4W
PoE+: 30W
PoE++: 60WVoltage range PoE modePoE: 44—57V
PoE+: 50—57VLCM display(1) 1.3″ touchscreenButtonFactory resetAmbient operating temperature-5 to 40° C (23 to 104° F)Ambient operating humidity10 to 90% noncondensingCertificationsCE, FCC, ICSwitching FeaturesLayer 2 featuresIGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLsLayer 3 featuresDHCP for locally-managed networks
DHCP relay
Inter-VLAN routing between networks on same switch
Static routing between local networks
Network isolation with ACLsEtherlighting™EthernetLocating
Speed/link
Native VLAN/networkSFP+Locating
Speed/link
Native VLAN/networkLEDsSystemStatusRPSStatusApplication RequirementsUniFi NetworkVersion 8.0.24 and later
