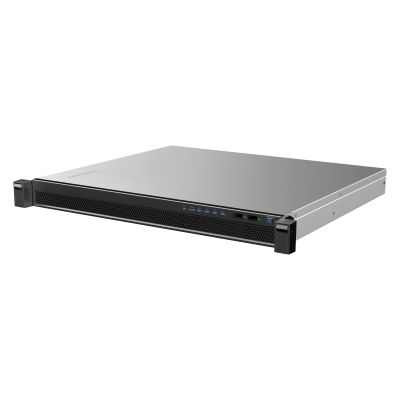

Servidor de gestión DSS modelo S2

System

Main Processor

64 bit 4 core CPU (CORE-I3-6100)

Operating System

Linux

Power

Support hot swap

Memory

8GB(1×8GB)

Chassis

1.0mm SGCC steel plate

Interface

Network Port

4 Ethernet Ports(10/100/1000Mbps )

RS232

Reserved

RS485

Reserved

USB Port

Front panel: 2 × USB 3.0, Rear panel: 2 × USB 3.0

onboard panel:1 × USB 2.0

HDMI

2 HDMI, one as network config, another as spare

VGA

1 VGA, as network config

HDD Installation

Built-in 1× 1T HDD disk (2.5″) for system

Support 3HDD disks (2.5″) for Video &Picture storage

Video Management

Video Channels Per Server

512¹

Number of Face Recognition Camera

32

ANPR

32

Video Intercom

1024²

Access Control

100 IP, 512 Door³

Concurrent User

100 Online Users

Bandwidth of Video Input Per Server

350 Mbps

Bandwidth of Video Output Per Server

350 Mbps

Bandwidth of Video Storage Per Server

150 Mbps

Other

Power

100V ~ 240V, 47 ~ 63Hz

Consumption

70W ~ 120W (with HDD)

Working Environment Temperature

0?~ 45?

Working Environment Humidity

5%~90% (non-condensation)

Storage Environment Temperature

-20?~ ?70?

Storage Environment Humidity

5% ~ 90% (non-condensation)

Working Altitude

-60m ~ 3000m

Weight

(Without Package)

6.0Kg

Dimension

1U, 440mm×398.6mm×43.65 mm

Installation Method

Standard 19″ rack installation
