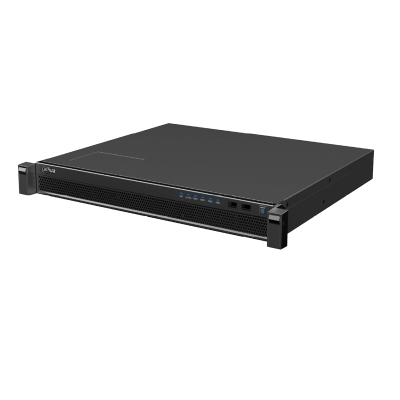

Servidor de gestión DSS

System

Main Processor

64 bit 4 core CPU

Operating System

Embedded Linux

Memory

4GB

Chassis

1.0mm SGCC steel plate

Interface

Network Port

4 RJ-45 Ports(10/100/1000Mbps )

Ethernet Port

4 Ethernet Ports Joint Working or 4 Independent

1000Mbps Ethernet Ports

RS232

Reserved

RS485

Reserved(reusable with alarm port)

Alarm input/output

Reserved(reusable with alarm port)

USB Port

Front panel: 2× USB 3.0, Rear panel: 2 × USB 2.0

HDMI

2 HDMI, one as network config, another as spare

VGA

1 VGA, as network config

HDD Installation

Built-in 1× 1T HDD disk (2.5″) for system

Support 3HDD disks (2.5″) for Picture storage

Video Management

Number of Connected Cameras Per Server

256 IP devices and 256 channels

ONVIF Device

50

Auto-Register

200

Clients Per System

50 Online Users

Numbers of Users

Unlimited

Numbers of Roles

100

Mobile DVR Device

50IP, 200channels

Bandwidth of Video Input per Server

300 Mbps

Bandwidth of Video Output per Server

300 Mbps

Alarm Inputs

20/s (Average), 80/s (Peek)

Other

Power

100V ~ 240V, 47 ~ 63Hz

Consumption

35W ~ 50W (with HDD)

Working Environment Temperature

0?~ 50?

Working Environment Humidity

5%~90% (non-condensation)

Storage Environment Temperature

-20?~ ?70?

Storage Environment Humidity

5% ~ 90% (non-condensation)

Working Altitude

-60m ~ 3000m

Weight

(Without Package)

4.5Kg

Dimension

1U, 440mm×398.6mm×43.6 mm

Installation Method

Standard 19″ rack installation
