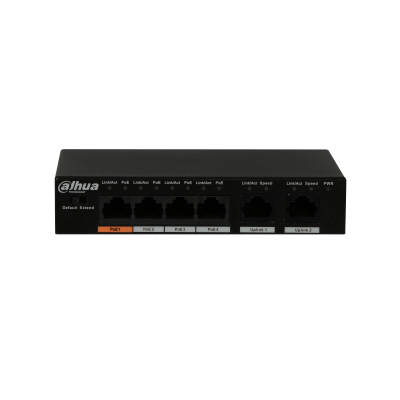

Switch 4 puertos PoE 10/100, 2 puertos Uplink, soporta Hi-PoE

PFS3006-4ET-60Agotado
Cantidad

Technical Speci?cation

Model

PFS3006-4ET-60

Ethernet Port

2*10/100Mbps Uplink ports

4*10/100 Mbps PoE ports

PoE Power Consumption

Port1=60W, Port2-4=30W, Total=60W

PoE PIN Assignment

1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

PoE Power Management

Support

PoE Protocol

IEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE

Switching Capacity

1.8Gbps

Packet Forwarding Rate

890kpps

Packet Buffer Memory

768Kb

MAC Table Size

2K

Flow Control

Enable by default

Application Humidity

5%~95%

Power

DC 48~57V power adapter

Lightning Protection

Common Mode 2KV

Differential Mode 1KV

ESD Protection

Air Discharge 8KV

Contact Discharge 6KV

Working Temperature

-10°C~55°C

Weight

290g

Dimension(W×D×H)

130mm×85mm×26mm
