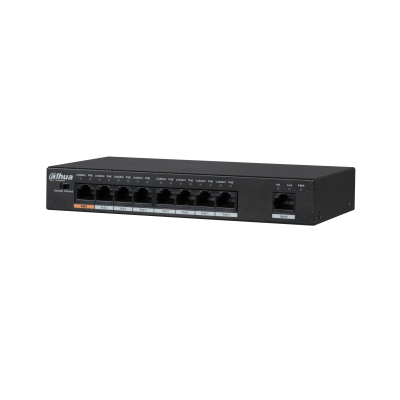

Switch 8 puertos PoE 10/100, 1 puerto Uplink, soporta Hi-PoE

Technical Speci?cation

Model

DH-PFS3009-8ET-96

Ethernet Port

1*10/100 Base-T

8*10/100 Base-T (PoE power supply)

PoE Power Consumption

Port1=60W, Port2-8=30W, Total=96W

PoE PIN Assignment

1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

PoE Power Management

Support

PoE Protocol

IEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE

Switching Capacity

1.8Gbps

Packet Forwarding Rate

1.34Mpps

Packet Buffer Memory

768Kb

MAC Table Size

2K

Flow Control

Enable by default

Application Humidity

5%~95%

Power

DC 48~57V power adapter

Lightning Protection

Common Mode 4KV

Differential Mode 2KV

ESD Protection

Air Discharge 8KV

Contact Discharge 6KV

Working Temperature

-10°C~55°C

Weight

490g

Dimension(W×D×H)

190mm×100mm×30mm
