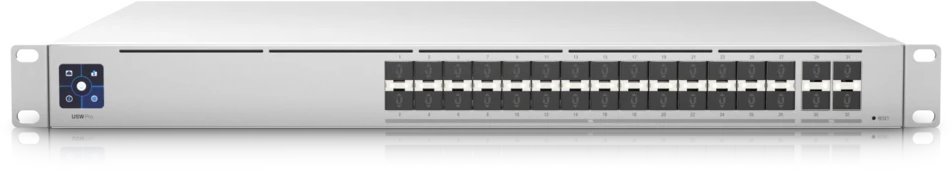

UniFi Pro Aggregation Switch
Build and expand your network with the UniFi
® Switch, part of the Ubiquiti Networks
® UniFi Enterprise System.
The UniFi Switch, model USW-Aggregation-Pro, is a congurable 10G ber Layer-3 switch. It offers 28 10G SFP+
ber links to your devices and 4 25G SFP28 ber uplink options to your enterprise network.
The USW-Aggregation-Pro features a 1.3″ touch LCM. The LCM provides current switch states and the necessary
information you need for quick diagnosis.
Managed and congured by the UniFi Controller with UniFi Mobile app support, the UniFi Switch offers an
extensive suite of advanced Layer-3 switching protocols and features, including operation mode (switching,
mirroring, or aggregate) per port, Inter-VLAN routing, static routing, and DHCP server. The UniFi Controller and
mobile app allow admins to congure and monitor virtually all of the switch features in a graphical user interface
from anywhere.
RPS DC inputis a new feature on USW-Aggregation-Pro, this DC input provides redundant power when the
switch is connected to USP-RPS (UniFi Smart Power RPS) via RPS DC input.
When the switch’s internal PSU is off, the Switch function can keep working by backup power from the USP-RPS
input port.
Mechanical
Hardware
Dimensions 442 x 325 x 44 mm (17.4 x 12.8 x 1.7″)
Weight Without Mount: 4.6 kg (10.14 lb)
With Mount: 4.7 kg (10.36 lb)
Enclosure Material SGCC Steel
Total Non-Blocking Throughput 380 Gbps
Switching Capacity 760 Gbps
Forwarding Rate 565.44 Mpps
Max. Power Consumption 100W
Power Method (1) Universal AC input, 100-240VAC, 2A Max, 50/60 Hz
(1) USP-RPS DC input, 11.5VDC, 8.7A
Power Supply AC/DC, Internal, 100W
Networking Interfaces (28) 1/10 Gbps SFP+ Ethernet
(4) 1/10/25 Gbps SFP28 Ethernet*
*ThefourSFP28ports don’t supportmixedspeedat25Gbps mode.OnceoneoftheSFP28ports is conguredat25Gbps mode,theothers will belimitedat25Gbps too.
TheSFP28ports only supportmixedspeedwhenall ports areat1Gbps or10Gbps.
LCM Display (1) 1.3″ Touchscreen
Bootup Animation: Bootup in Progress
Firmware Upgrade Icon: Firmware Upgrading
Steady White: Factory Defaults, Awaiting Adoption
Steady Blue: Device is Adopted
LEDs SFP28/SFP+: White, Link and Activity
ManagementInterface EthernetIn-Band
Modes SMB Layer 3 10/25 G Fiber Switch
ESD/EMP Protection Air: ± 16kV, Contact: ± 12kV
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 10 – 90% Noncondensing
Certications CE, FCC, IC
