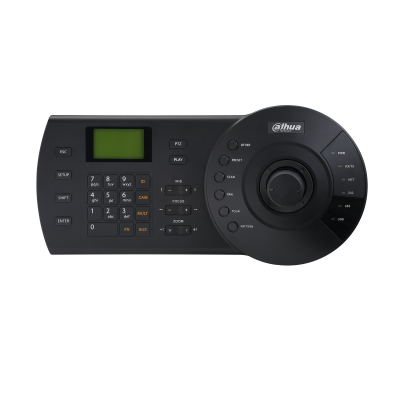

Teclado Joystick para movimiento PTZ

NKB1000Disponibles: 10

Model

Model

NKB1000

KBD1000

KB1000

General

Keyboard Key panel

Electromechanical

Joystick

3-axis, vector-solving, with twisting, return to-center head

Keyboard Connector

RJ-45, RS232, RS485, RS422, USB

RS232, RS485, RS422

RS485, RS422

Keyboard Communication

Direct Mode, Network Mode

Direct Mode

Direct Mode

Direct Mode

Interface: RS232/RS485

DVR Protocol: DH2

Dome Protocol: DH-SD/PELCO-D/PELCO-P/PELCO-D1/PELCO-P, etc

Network Mode

Interface: RJ45

DVR/Network Dome:

IP Address/Port/Protocol

N/A

N/A

Display

LCD, 75.2mm×33.85mm

Environmental

Power Supply

Power adapter, input 100V~240V 50Hz/60Hz, output DC12V/1000mA

Power Consumption

5W

Working Temperature

-10?~+55?

Working Humidity

10% ~ 90%

Atmosphere Pressure

86kpa~106kpa

Dimension

330mm×160(140)mm×37.5(21)mm (W×D×H)(height: 100mm including joystick)

Weight

2.5kg (Including package)
