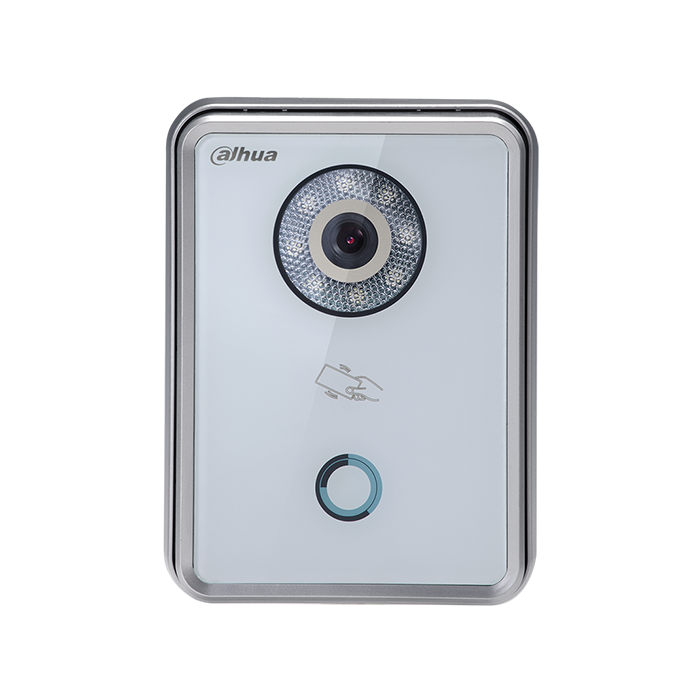

Video Portero IP 1MP con lector de tarjetas

VTO6210BWAgotado

Technical Speci?cation

Model

VTO6210B/BW

System

Main Processor

Embedded Micro Processor

Operation System

Embedded LINUX OS

Video

Video Compression

H.264

Image Sensor

1/4” 1MP CMOS

Lens

3.6mm

Angle of View

D:70° H:60°

Day/Night

Color Image

Audio

Audio Compression

G.711

Audio Input

Omnidirectional Mic

Audio Output

Built-in Speaker

Bidirectional Talk

Support Dual-way Bidirectional talk

Operation Mode

Keypad

Single Touch Button

Reader

Mifare Card

Interface

Door Control

2(1 relay out for main lock, 1 extended by access control module)

Alarm In

2(1ch unlock button, 1ch feedback)

RS485

1

Network

Ethernet

10M/100Mbps Self-adaptive

Network Protocol

TCP/IP

General

Ingress Protection

IP65

Tamper Switch

1

Installation

Surface

Material

Tempered Glass

Power

DC 12V

Power Consumption

Standby =1W, Work =10W

Working Temperature

?30°C~+60°C

Relative Humidity

10%~90%RH

Dimensions

154.2mm×114.2mm×43.0mm

Weight

0.6Kg
