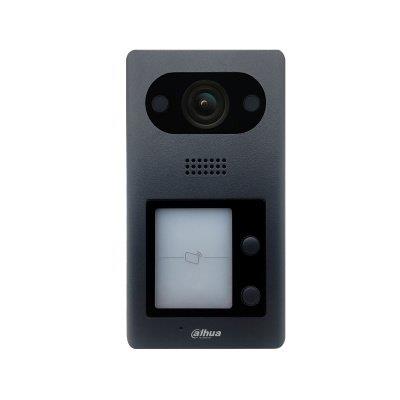

Video Portero IP 2MP, de exterior con IR para 2 casas

VTO3211D-P2Agotado

Technical Speci?cation

Model

VTO3211D-P2

System

Main Processor

Embedded Micro Processor

Operation System

Embedded LINUX OS

Video

Video Compression

H.264

Image Sensor

1/2.8” 2MP CMOS

Focal Length

1.9mm

Angle of View

H:140°

Day/Night

ICR

Audio

Audio Compression

G.711

Audio Input

Omnidirectional Mic

Audio Output

Built-in Speaker

Bidirectional Talk

Support Dual-way Bidirectional talk

Operation Mode

Keypad

2 Mechanical Buttons

Reader

Mifare Card

Interface

Door Control

1

Alarm In

2(1ch unlock button, 1ch feedback)

RS485

1

Network

Ethernet

10M/100Mbps Self-adaptive

Network Protocol

TCP/IP

Ethernet

10M/100Mbps Self-adaptive

Network Protocol

TCP/IP

General

Ingress Protection

IP65, IK08

Tamper Switch

1

Installation

Surface

Material

Aluminum

Power

DC 12V, PoE(802.3af)

Power Consumption

Standby =1W, Work =7W

Working Temperature

?40°C~+60°C

Relative Humidity

10%~90%RH

Dimensions

182.0mm×30.0mm×101.0mm

Weight

0.8Kg
