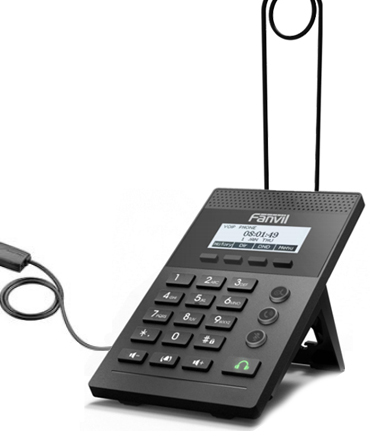

Telefono IP marca Fanvil modelo X2C

X2CDisponibles: 45

Call Features

  • Call out / answer / reject
  • Mute / unmute (microphone)
  • Call hold / resume
  • Call waiting
  • Intercom
  • Caller ID display
  • Call forwarding (always / busy / no answer)
  • Call transfer (attended / unattended)
  • Call parking / pick-up (depending on server)
  • Redial / auto-redial
  • Do-not-disturb (DND)
  • Auto-answering
  • Voice message (on server)
  • Local 3-way conference
  • Hotline
  • Hot-desking

Phone Features

  • Phonebook (500 entries)
  • Remote phonebook (XML / LDAP)
  • Call log (100 entries, in / out / missed)
  • Black / white list call filtering
  • Voice Message Waiting Indication (VMWI)
  • Programmable soft keys
  • Network time synchronisation
  • Action URL / active URI
  • Multi-language support in screen and web UI: English, Chinese (traditional/simplified), Japanese, Russian, Italian, Turkish, Germany, Dutch, Spanish, Hebrew, Polish, French etc.

Audio

  • Wideband ADC / DAC 16KHz sampling
  • Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB
  • Wideband CODEC: G.722
  • Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)
  • Packet Loss Concealment (PLC)
  • Dynamic adaptive jitter buffer up to 300ms
  • DTMF: In-band, uut-of-Band – DTMF-Relay (RFC2833) / SIP INFO

Networking

  • 10/100Mbps Ethernet, dual bridged port for PC bypass
  • IP configuration: Static / DHCP / PPPoE
  • Network access control: 802.1x
  • VPN: L2TP (basic unencrypted) / openVPN
  • VLAN
  • QoS

Protocols

  • SIP2.0 over UDP/TCP/TLS
  • RTP/RTCP/SRTP
  • STUN
  • DHCP
  • PPPoE
  • 802.1x
  • L2TP (Basic Unencrypted)
  • OpenVPN
  • SNTP
  • FTP/TFTP
  • HTTP/HTTPS
  • TR069

RFCs:

  • 354/1321/1350/1769/1889/1890/2131/2132/2616/2617/2661/2833/2976/32
    61/3262/3263/3264/3265/3268/3311/3489/3711/4346/4566/5630/5865

Deployment & Maintenance

  • Auto-provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR069
  • Web management portal
  • Web-based packet-dump
  • Configuration export / import
  • Phonebook import / export
  • Firmware upgrade
  • syslog

Physical Specifications

  • LCD: 128×48 dot-matrix
  • Keypad: 23 keys, including:
    -4 soft keys
    -3 function keys
    -12 standard phone digit keys
    -2 volume control keys, lower / increase (left / right)
    -1 volume select key, (down)
    -1 headset key
  • 1.5M CAT5 Ethernet cable x1
  • 3.5mm port x2: headset x1, foot pedal x1
  • RJ9 port x2: headset x1, monitor earphone x1
  • RJ45 Ethernet port x2: network x1
  • PC x1 (bridged to network)
  • Main chipset: broadcom
  • DC power input: 5V / 0.6A
  • Power consumption: idle – 0.9~1.6W, peak – 1.6~2.5W
  • Working temperature: 0~40?
  • Working humidity: 10~65%
  • Back rack x1: desktop stand
  • Colour: black
  • Gift box dimensions: 200x175x52mm (L x W x H)
  • Outer CTN dimensions: 555x370x220mm (20 PCS)
